AMX Reticle

Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.

Half Mil Dot spacing on the lower post provides increased aim points for long shots.

The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.

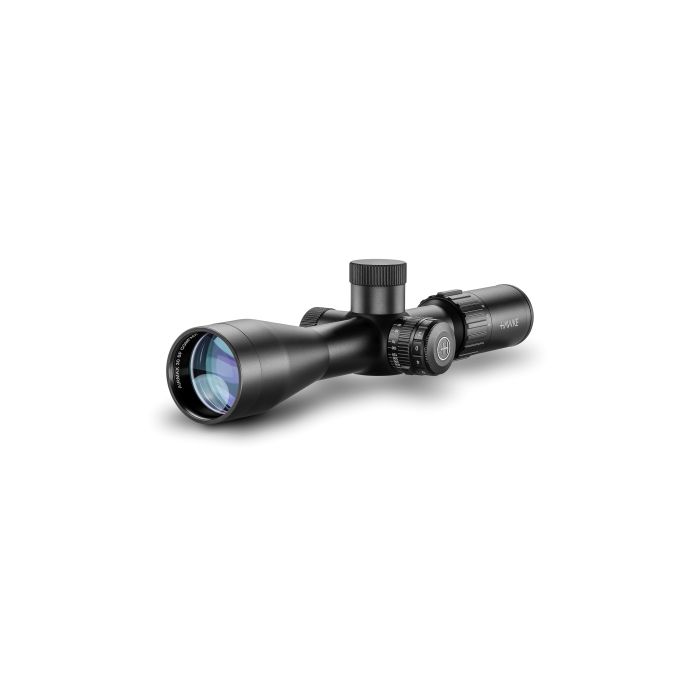

Magnification: 4 - 16x

Reticle: AMX IR

Optical System: System H2

Objective Lens: 44mm

Parallax: Side Focus

Focal Plane: SFP (Second Focal Plane)

Scope Tube: 30mm

Illumination: 6 Levels with Off Positions In-between - Red

Field of View: 32.8 - 8.2ft 100yds - 10.9 - 2.7m 100m

Field of View: 6.2 - 1.6°

Eye Relief: 3in - 76mm

PX/Focus: 10yds - ∞ - 9m - ∞

Exit Pupil: 0.43 - 0.11″ - 11 - 2.8mm

Weight: 21.9oz - 621g

Length: 11.7″ - 296mm

Turret Caps: YES

Click Value: ¹⁄ ₁₀MRAD

Elevation Turret Clicks (max): 20 MRAD

Windage Turret Clicks (max): 20 MRAD

Ocular Type: Fast Focus

Power Selector: Knurled Posi-Grip

Lens Coating: Fully Multi-Coated - 16 Layers
